Rapid Ref : H1037 Mfr Ref : 925ED15OX597

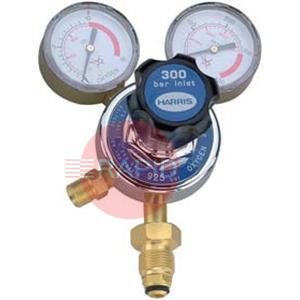

Harris 925 Oxygen Single Stage Two Gauge Heavy Duty 15Bar, 5/8" BSP RH Cylinder Connection, 3/8" BSP Outlet, UK Fitting Only
925ED15OX597 H1037

Name: Harris 925 Oxygen Single Stage Two Gauge Heavy Duty 15Bar, 5/8" BSP RH Cylinder Connection, 3/8" BSP Outlet, UK Fitting Only
SKU: H1037
Price: 143.72 GBP

£143.72 EX VAT

SSP Suggested Selling Price = £159.65 YOU SAVE £15.93

Buy in 3 easy interest free payments of £47.91^† with

Applications

Heavy duty cutting, heating, and welding
Large, strong regulator for the professionals

Features

Forged brass body for maximum strength
Maximum inlet pressure of 300 bar
Enough flow to cut up to 400 mm steel
Large Ø 70 mm diaphragm stabilizes working pressure
High pressure capsule seat with Kel-F (CTFE) sealing surface

Brochures & Manuals

BROCHURES & MANUALS

View Brochure

Oxygen Single Stage Gas Regulators FAQs

Answers on choosing, fitting and looking after single stage oxygen regulators for cutting and welding.

Do I need a regulator with two gauges, or is a gaugeless one fine?

Regulators can have a contents gauge on the cylinder side showing supply pressure, and a second gauge on the outlet side showing the working pressure. Some adjustable regulators have no gauges but a pressure indication marked on the housing, and some give a fixed pressure.

Two gauges let you see how much gas is left and set the working pressure accurately, which suits cutting where you need to match the tip chart. A gaugeless type gives you no direct contents reading, so it is better where the pressure needs are simple and you have another way to judge the cylinder. Gauges should meet the relevant standard, which includes safe venting if the gauge fails.

What do the inlet and outlet sizes on an oxygen regulator mean?

The inlet is the nut that connects to the cylinder valve, and the outlet is the connection for the hose or flashback arrester. On UK oxygen regulators you will commonly see a 5/8 inch BSP right-hand inlet and a 3/8 inch BSP outlet, but the exact fitting depends on the cylinder valve and the maker.

Oxygen connections use right-hand threads, while fuel gas connections use left-hand threads, partly to avoid mix-ups. Check the cylinder valve outlet and the hose or arrester thread before ordering, and note that a regulator made for another country's cylinder connection will not fit a UK cylinder.

What is the difference between side entry and bottom entry regulators?

It is only about how the regulator meets the cylinder valve. A bottom entry regulator has the inlet underneath, so it sits upright on a cylinder with an upward-facing valve outlet. A side entry regulator has the inlet on the side, so the gauges face the right way on a cylinder whose valve outlet points sideways.

The threads are normally the same. The choice does not change whether the regulator is single or two stage. You can use either style with an adaptor, but the gauges may then end up at an awkward angle, so choose the style that matches your cylinder valve and keeps the gauges easy to read.

Can I use an oxygen regulator on a 300 bar cylinder?

Check the maximum inlet pressure on the regulator before connecting it. Regulators are made for different maximum supply pressures, and it is possible to connect a regulator designed for 200 bar to a 300 bar cylinder valve. The HSE notes this mismatch may not fail immediately, but with oxygen the internal components may not be suitable at the higher pressure.

The maximum inlet pressure is marked on the regulator body and in the instructions. Only use a regulator rated for at least the pressure of the cylinder you are connecting it to, and ask if you are unsure.
