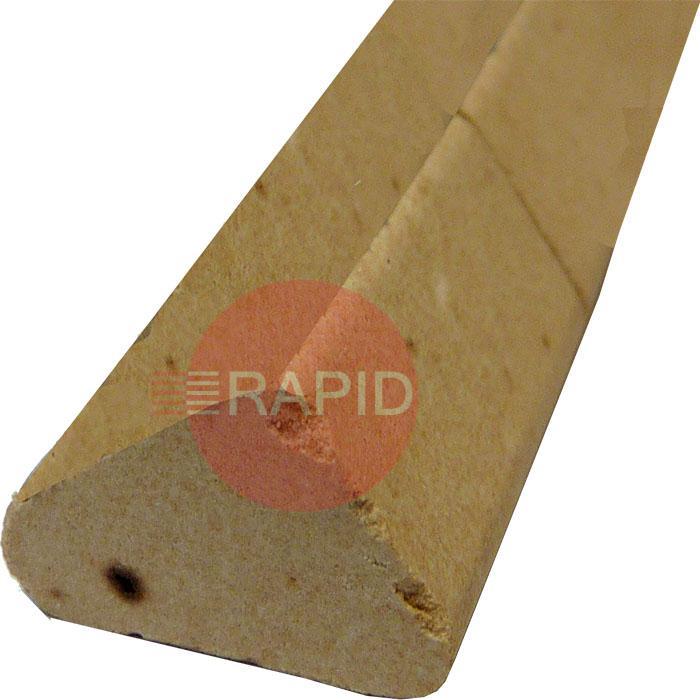

All 1G33 tiles are suitable for K or X preps where the bevel angles are 45, 60 or 90°. Also suitable for welding with M.I.G./M.A.G. solid wire, metal-cored or flux-cored wires. They are a substitute for round tiles where the benefit of the 1G33 range of tiles is a “full-face” contact with the joint preparation... reducing the risk of burn-through as may occur with the round tiles where you have a single point contact of the tile with the workpiece. 1G33-90 is also used when reverse side of a single bevel, single V butt joint where the reverse angle will always be 90°.
Can be used as shown below.
- Impart X-ray quality back beads on root pass
- Weld one side only
- Deposit more weld metal
- Root weld and fill in one pass
- Eliminate defects and rework
- Eliminate costly unnecessary gouging and grinding
- Sizes 1/4” (6.3 mm) to 6” (152.4 mm)
- Special sizes and configurations available
- Conveniently packaged and sealed in plastic for moisture-proof protection
- Wider heat receptive pressure sensitive foil for improved adhesion to work piece
12m - 40ft./ box
| Specifications |
| A |
9/16 in
14.3 mm |
| B |
5/8 in
15.9 mm |
| C |
1 in
25.4 mm |
| D |
40° in |
| E |
55° in |
| F |
85° in |
| G |
1/8 in
3.2 mm |
| H |
7/64 in
2.8mm |
| I |
3/32 in
2.4mm |
