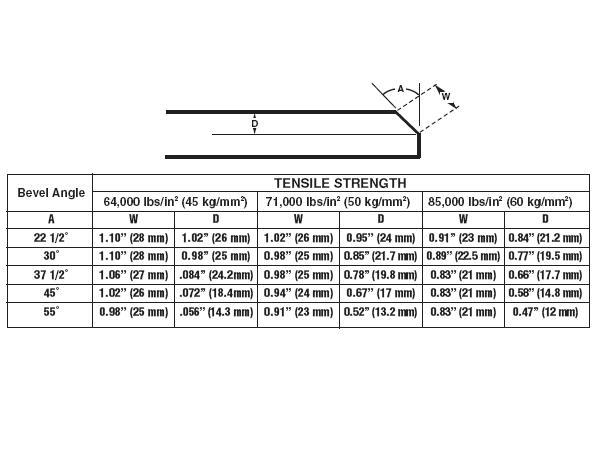

With adjustable bevelling head to produce bevel angles 22-1/2°, through 55°. Bevelling speed 120 IPM (305cm/min). Bevelling produced by a rotary shear type cutter ideal for bevelling mild steel, stainless steel and aluminium plates from 5/16" to 2" (8 - 50mm) thick with a maximum bevel width of 1.10" (28mm) at a standard bevel angle 30°.
Machine supplied with a KBM-28-X1C medium tooth cutter, angle bevel pins for 22-1/2°, 30°, 37-1/2°, 45° and 55° bevels. All bevel angles are obtained by tilting the adjustable cutter head assembly on its base frame. The machine is complete with a 3HP, 3-phase motor. Voltages available: 230V, 460V and 575V, 3 phase 60hz, and 380V, 415V, 3 phase, 50hz.
(Specify voltage at the time of placing order)
