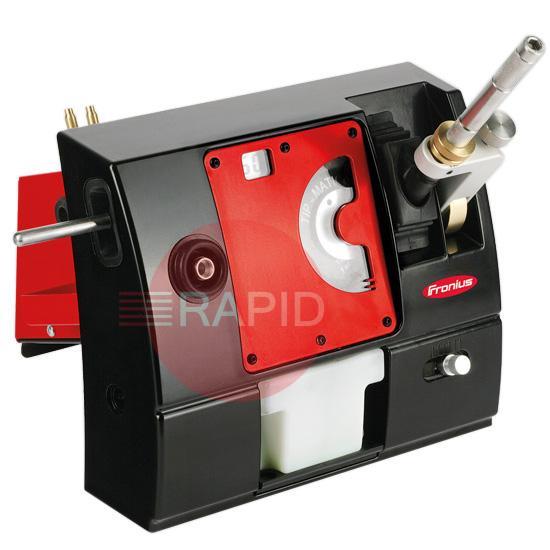

    Fronius TIG Tungsten Grinder - 230v
    42,0510,0129

    £2648.20  EX VAT
     Buy in 3 easy interest free payments of £882.73† with

    The Fronius TIG Grinder provides precise grinding of tungsten electrodes with an additional integrated cut-off function. This wet-grinder system is self-contained, protecting the welder from harmful grinding dust. The high-speed diamond grinding disc gives TIG electrodes a smooth polished surface for perfect welding results.

    Features

    • TIG electrodes can be dressed and cut to length in a single device
    • Three grinding positions, for optimum utilisation of the diamond grinding disc
    • Perfect longitudinal grinding
    • Digital angle display, for exact parameters that can be set identically every time
    • The collection container is easy to remove, riskless and without the need for tools
    • The following electrode diameters can be selected as standard: 1.6 / 2.4 / 3.2mm
    • Optionally available: 0.8 / 1 / 2 / 4 / 4.8mm
    • For extreme custom applications, grinding options are also available for 5 / 6 / 7 / and 8mm electrode diameters on enquiry

    Brochures & Manuals

    Tungsten Sharpening FAQs

    Straight answers to the questions people ask most when choosing and using equipment for sharpening TIG tungsten electrodes.

    Why use a dedicated tungsten grinder instead of a bench grinder?icon-minus-redicon-plus-red

    A dedicated grinder holds the tungsten at a fixed, repeatable angle, so every tip comes out the same, and it grinds with a wheel used only for tungsten. This avoids contaminating the tip with other metals, which would affect the arc. Many also catch the dust.

    A general bench grinder is harder to control, the angle varies, and a wheel that has ground steel will pass particles onto the tungsten. If you do use a bench grinder, use a wheel kept only for tungsten.

    What angle and shape should I grind?icon-minus-redicon-plus-red

    It depends on your current, the material, the tungsten type and the machine. In general, a longer, sharper taper gives a narrower, more focused arc for thin work and low current, while a shorter, blunter taper tends to cope better with higher current and gives deeper penetration. For DC work a small flat at the tip is often used.

    For AC welding, including aluminium, the tip is often blunter or lightly rounded, but this varies with the tungsten type. Follow the guidance from your machine and tungsten makers, then adjust by trial welds.

    What is a wet grinding system and how does it differ from dry?icon-minus-redicon-plus-red

    In a wet system, a liquid is used at the grinding wheel to keep the work cool and to trap the fine tungsten dust, so less dust is released into the air. Dry systems usually have an extraction or filter instead.

    Some grinders supply a liquid for wet cutting and grinding. Follow the maker's instructions for the correct liquid and its disposal. Whichever system you use, treat the dust with care and keep to the maker's guidance.

    Is tungsten dust dangerous?icon-minus-redicon-plus-red

    Grinding dust should be controlled whatever the tungsten type. Thoriated tungsten is mildly radioactive, and the main concern is breathing in or swallowing the dust, so many workshops use other types. The dust of any type is an irritant that you should not breathe in, and the sparks and fragments are an eye hazard.

    Grind with dust extraction or a system that captures it, wear eye protection, avoid blowing dust away, and wash your hands afterwards. Follow the HSE guidance, the maker's instructions and your own risk assessment, including for disposal of the dust.
