090-002068-00502 EWM Picotig 220 DC Puls 5P TIG Welder Power Source - 230v, 1ph
  • 090-002068-00502 EWM Picotig 220 DC Puls 5P TIG Welder Power Source - 230v, 1ph
  • 090-002068-00502 EWM Picotig 220 DC Puls 5P TIG Welder Power Source - 230v, 1ph
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : 090-002068-00502

EWM Picotig 220 DC Puls 5P TIG Welder Power Source - 230v, 1ph
090-002068-00502

Click here to see what's included
£1835.00  EX VAT
 Buy in 3 easy interest free payments of £611.67† with
Additional items to consider
Choose your Option
GasiQ Maxex Bottom Entry Regulator x1 £63.73
GasiQ TIGEX I Argon/Mix Side Entry Regulator x1 £136.06
GasiQ TIGEX II Argon/Mix Side Entry Regulator x1 £138.97
Add a Flowmeter
Argon Flowmeter 0 to 14 LPM x1 £11.57
GasiQ TIGEX I Flowmeter. 20L x1 £58.10
Choose a Tungsten Electrode
CK 2% Thoriated Tungsten Electrode 1.6mm x 175mm x1 £3.78
CK 2% Thoriated Tungsten Electrode 2.4mm x 175mm x1 £5.13
CK 1.5% La Gold Tungsten Electrode 1.6mm x 175mm x1 £3.78
CK 1.5% LaGold Tungsten Electrode 2.4mm x 175mm x1 £5.13
CK 0.8% Zirconiated Tungsten Electrode 2.4mm x 175mm x1 £8.60
CK 0.8% Zirconiated Tungsten Electrode 3.2mm x 175mm x1 £15.33
Choose TIG Gauntlets
Kemppi Craft Model 7 Welding TIG Gloves - Size 7 x1 £19.36
Kemppi Craft Model 7 Welding TIG Gloves - Size 8 x1 £19.36
Kemppi Craft Model 7 Welding TIG Gloves - Size 9 x1 £19.36
Kemppi Craft Model 7 Welding TIG Gloves - Size 10 x1 £19.36
Kemppi Craft Model 7 Welding TIG Gloves - Size 11 x1 £19.36
Kemppi Craft Model 7 Welding TIG Gloves - Size 12 x1 £19.36

TIG DC inverter welding machine, portable, gas-cooled, 5-pole, with PFC module.

  • High-efficiency current draw thanks to integrated PFC (Power Factor Correction) technology
  • TIG DC and TIG pulse up to 220A
  • Non-latched /latched operation spotmatic and spotArc
  • MMA, MMA pulse, MMA cel, MMA cel pulse, up to 190A
  • 1.5mm - 4.0mm MMA electrodes
  • Robust housing with impact-resistant plastic cover
  • 5-pole, digital welding torch connection with X technology allows users to connect Retox XQ welding torches

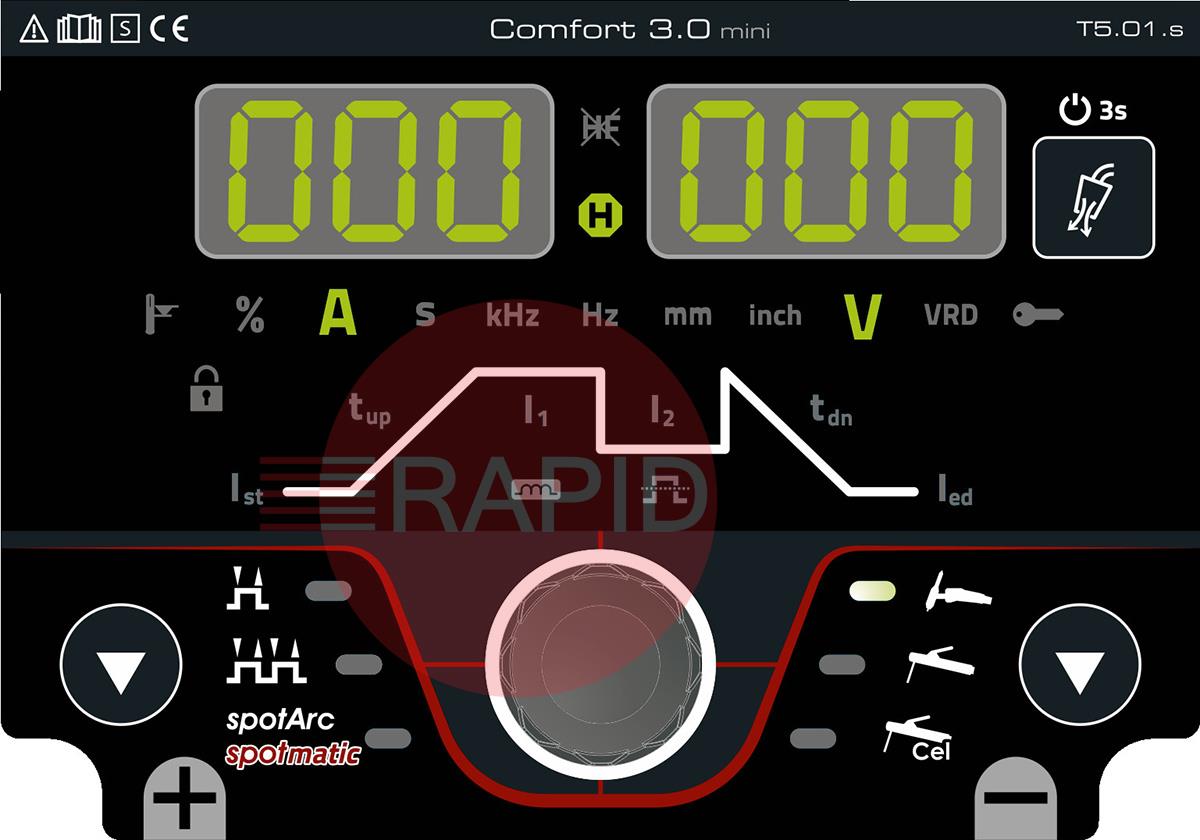

  • Comfort 3.0 mini control with two easy-to-read 7-segment displays for simple and fast selection of the most important parameters
  • Splash-proof in line with IP23
  • Temperature and speed-controlled cooling fan – reduced contamination and less noise emissions as the fan only runs when needed
  • Generator-compatible, even with long mains leads
  • High mains voltage tolerance
  • Consumables box in the handle – consumables always safely stored and within reach
  • Cable holder for holding mains cable as standard
  • Protective cap provided as standard protects the control against water, dirt, and impact
  • Adjustable hot start current and hot start time
  • Adjustable Arcforce
  • Anti-stick function
  • Energy-saving thanks to high efficiency and standby function
  • 5m mains supply lead with 16A shock-proof plug
  • Overvoltage protection: No damage to the machine caused if inadvertently connected to 400-V mains voltage

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   EWM Picotig 220 Puls DC 5P Operating Instructions

What's Included

EWMMANUAL EWM User Manual

EWM User Manual
WARRANTYEWM3 EWM 3 Year Parts and Labour Warranty (Requires Registration)

EWM 3 Year Parts and Labour Warranty (Requires Registration)

Related Items

230v TIG Welders FAQs

Straight answers to the questions people ask most when choosing and using single phase TIG welders.

How much power can I get from a 230v supply?icon-minus-redicon-plus-red

The supply limits the maximum welding current. A standard 13 amp socket gives less power than a dedicated higher-rated supply, so the output you can use continuously may be lower than the machine's maximum. Check the data plate for the input current at full output, and what protection it needs.

For higher currents or heavier duty, a dedicated circuit installed by a competent electrician may be needed. Do not assume a plug-in connection will suit full output.

Should I choose DC or AC/DC?icon-minus-redicon-plus-red

DC machines weld steel, stainless steel, copper and other metals except aluminium. AC/DC machines add alternating current, which breaks up the oxide layer on aluminium and magnesium, so they are needed for those metals.

If you will weld aluminium at all, choose AC/DC. If you only weld steel, stainless and similar metals, DC is simpler and more economical. AC/DC machines normally also offer controls for balance and frequency, to fine-tune the arc.

What size of machine do I need?icon-minus-redicon-plus-red

Think about the thickest material you will weld and the process, and choose a rating with some margin. Aluminium needs considerably more current than steel for the same thickness, and heavier sections need more again.

Also consider duty cycle, which describes how much of each ten minute period the machine can weld at a given current. A machine rated well above your usual working current runs cooler, lasts longer and is more pleasant to use.

What is a multi-voltage TIG welder?icon-minus-redicon-plus-red

A multi-voltage machine adapts to different supplies, for example running on both 110 and 230 volts, and sometimes wider ranges. This suits people who move between site and workshop or use different supplies.

The output you get depends on the supply connected, with less at lower voltages. Check the specification at each voltage, and make sure the plug, cable and protection match the supply you connect to.

See all 6 questions for this category
