Rapid Ref : 0447101881

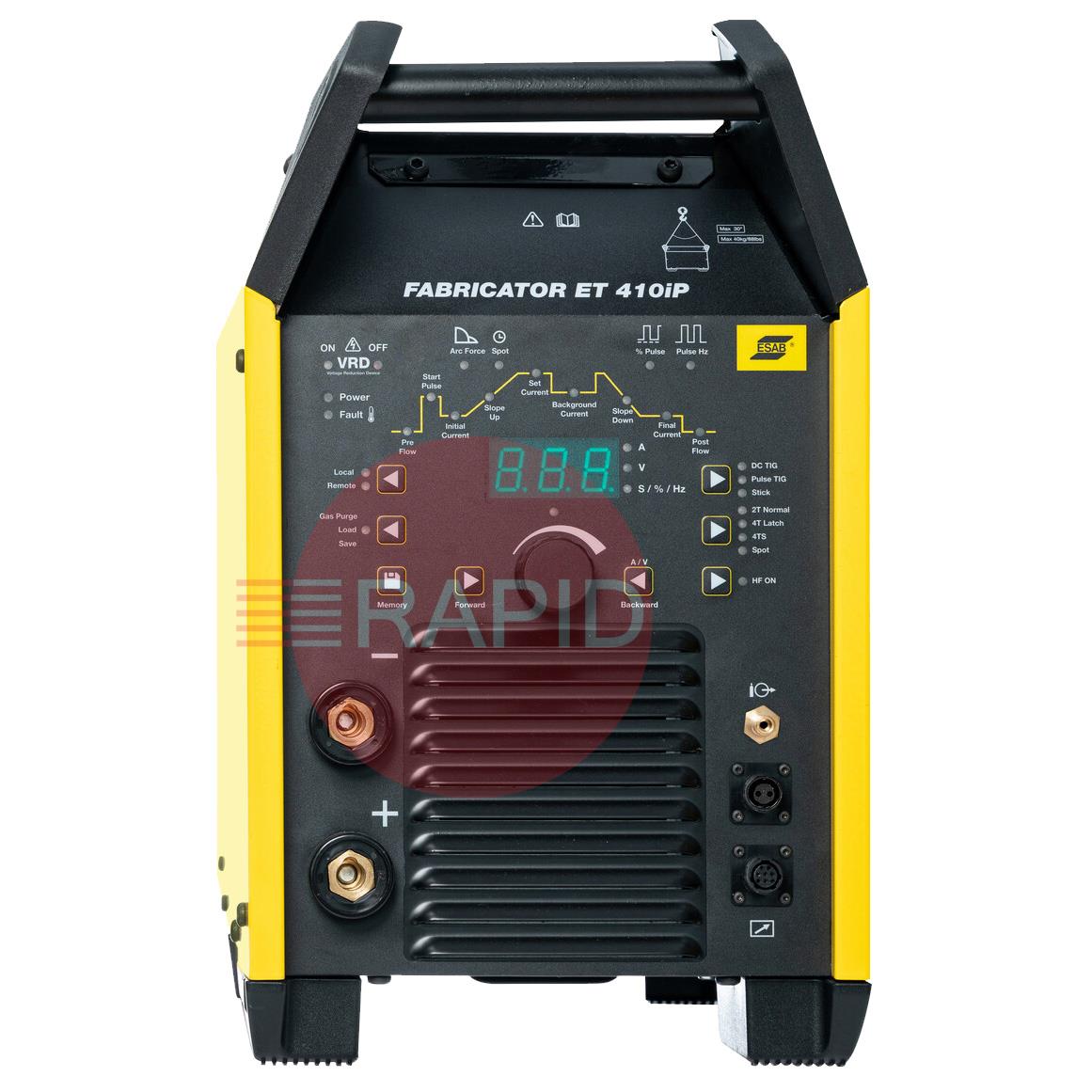

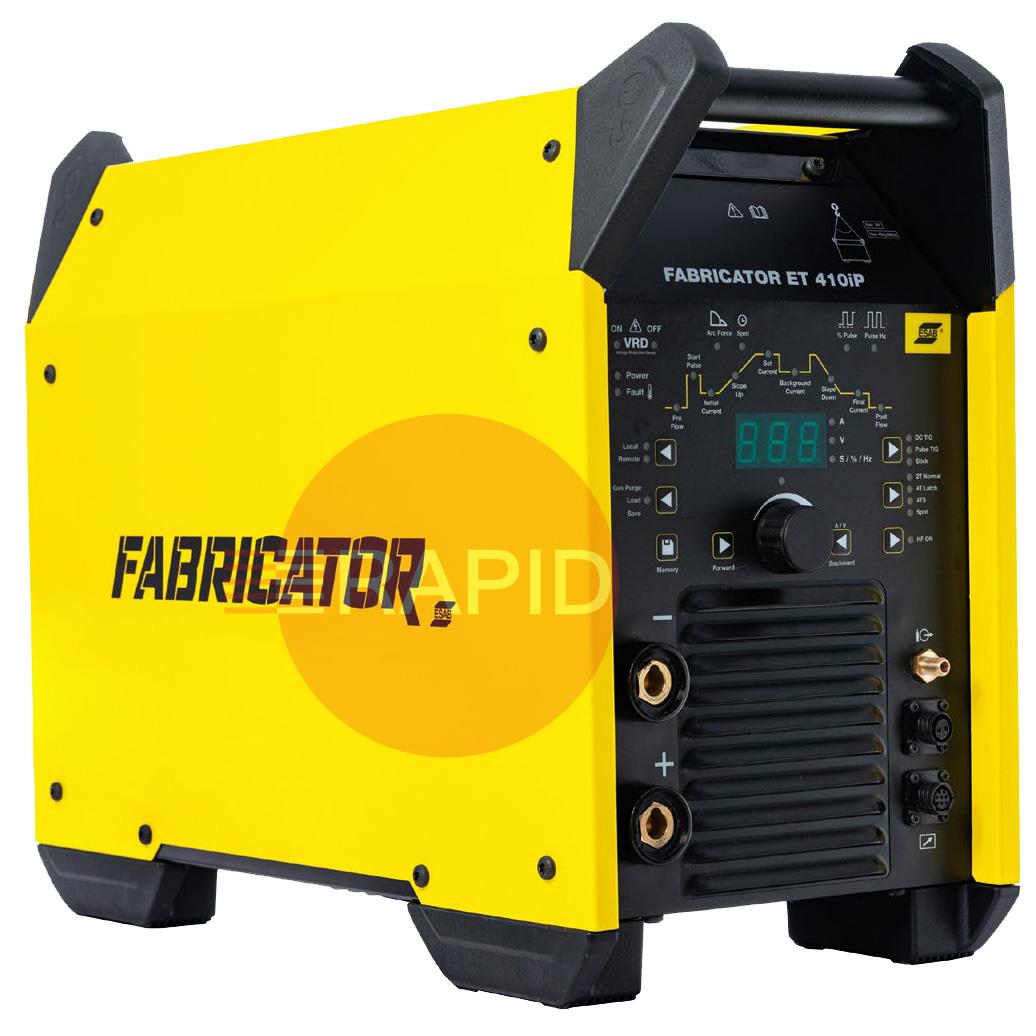

ESAB Fabricator ET 410iP CE Arc Welder Power Source - 400v, 3ph 0447101881

£2235.00 EX VAT

SSP Suggested Selling Price = £3192.00 YOU SAVE £957.00

Buy in 3 easy interest free payments of £745.00^† with

Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

The Fabricator ET 410iP is a heavy-duty inverter-controlled power source for HF TIG Pulse welding and MMA (Stick) welding. The Fabricator ET 410iP is built to withstand rugged use, making it a perfect solution for industrial usage. Ideal for heavy industries.

Features

The intuitive control panel of the ET 410iP makes it easy to optimise settings, reducing the time taken to achieve the best weld characteristics
Equipped with High Frequency for easy arc starts and Start Pulse (micropulse) which preheats the Tungsten electrode for improved arc stability from the start
Pulse background current between 10% and 90% of the set current and pulsing frequency from 0.5 to 250Hz, for optimal pulse in each application
Spot mode for easy tack welding and 4TS to be able to pulse only when it’s necessary
Wide mains voltage tolerance allows for stable welding
Inverter controlled for high efficiency and low power consumption
Excellent welding performance with Stick electrodes

Product Details

Specifications

Mains Voltage (Welding Input): 380-400-415-440 VAC (-15% +10%), 3 Ph,50/60 Hz
Fuse Slow: 32 A
Welding Output: 410 A / V at 60% Duty Cycle, at 40°C310 A / V at 100% Duty Cycle, at 40°C
Setting Range MMA/TIG: 30 –410 A / 5 –410 A
Pulse Background Current Settings Range: 10% to 90% of set current
Pulse frequency: 0.5 –250Hz
Efficiency Max Current: 89% MMA and 86% TIG
Idle power consumption: 40W (VRD OFF)15W (VRD ON)
Maximum Open Circuit Voltage (Max. With VRD ON): 76 VDC (15VDC)
Enclosure class: IP23S
Operating Temperature: -10 to +40°C (+14 to +104°F)
Certification Mark (Standard): CE
Dimensions LxWxH: 525 ×280 ×475 mm
Weight: 35.2Kg
