    Rapid Ref : BM18-X

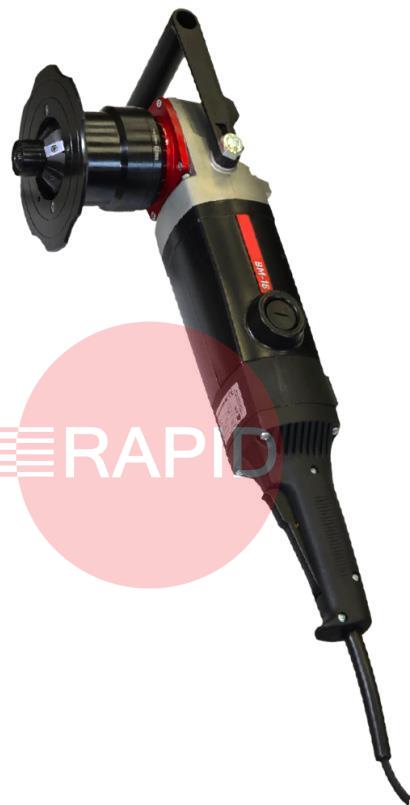

    JEI BM-18 Portable Beveller BM18-X

    Prices From £2095.00 ex VAT
    Select Option

    Designed as a direct replacement to the BM16 model, the BM18 is the latest portable multitask plate and pipe beveller with a powerful electric motor.

    Features
    • Maximum 18mm bevel
    • Uninterrupted bevel width adjustment
    • Brand-new user-friendly milling heads with increased durability
    • Electronic speed control between 1800-5850 rpm on a range of materials
    • Protection against overloading
    • Bevelling milling head equipped with 5 pcs of 2-sided indexable cutting inserts
    • Milling head for rounding equipped with 4 pcs of 4-sided indexable inserts up to R5

    Package Includes

    • BM18 machine (without accessories)
    • Plastic box
    • 32mm flat wrench
    • Allen wrench hex s=6
    • Grease for screws (5g, 0.17oz)
    • Operator’s manual

    Product Details

    Specifications

    Motor: 2200 watts
    Spindle speed (without load): 1800-5850 rpm
    Minimal diameter of countersinking: ca 40mm (1.57’’)
    Bevelling angles: ß = 22.5°, 30°, 37.5°, 45°, 50°, 55°, 60°
    Minimum workpiece thickness: 2mm (0.08”)
    Dimensions: Length - 585mm (23.0”) x Width - 156mm (6.1”) x Height - 238mm (9.4”)
    Weight: 10Kg (22lbs)
    Voltage: 110v / 220v
