This tile is similar to the standard flat tile but it is more flexible to go around a tighter radius. 1G83-FR is similar to the 1G42-FR but it is a thicker, larger tile to withstand higher currents where minimal penetration is required.
Can be used as shown below.
- Impart X-ray quality back beads on root pass
- Weld one side only
- Deposit more weld metal
- Root weld and fill in one pass
- Eliminate defects and rework
- Eliminate costly unnecessary gouging and grinding
- Sizes 1/4” (6.3 mm) to 6” (152.4 mm)
- Special sizes and configurations available
- Conveniently packaged and sealed in plastic for moisture-proof protection
- Wider heat receptive pressure sensitive foil for improved adhesion to work piece
9m - 30ft./ box
Available in 1/4” to 2” (6.3mm to 50.8mm) tiles.

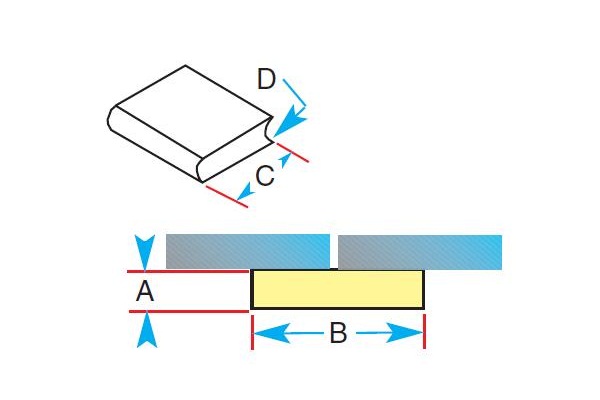

| Specifications |
| A |
5/16 in
7.9 mm |
| B |
1 1/4 in
31.7 mm |
| C |
1 in
25.4 mm |
| D |
3/16 in
4.8 mm |
