Similar applications to the 1G66-B but the fillet weld produced will be a convex radiused fillet instead of a mitred fillet.
Can be used as shown below.
- Impart X-ray quality back beads on root pass
- Weld one side only
- Deposit more weld metal
- Root weld and fill in one pass
- Eliminate defects and rework
- Eliminate costly unnecessary gouging and grinding
- Sizes 1/4” (6.3 mm) to 6” (152.4 mm)
- Special sizes and configurations available
- Conveniently packaged and sealed in plastic for moisture-proof protection
- Wider heat receptive pressure sensitive foil for improved adhesion to work piece
12m - 40ft./ box

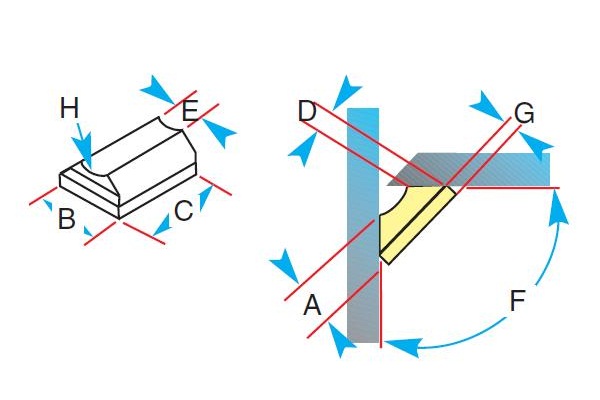

| Specifications |
| A |
5/16 in
7.9 mm |
| B |
7/8 in
22.2 mm |
| C |
1 in
25.4 mm |
| D |
7/32 in
5.6 mm |
| E |
7/16 in
11.1 mm |
| F |
90° |
| G |
3/32 in
2.4 mm |
| H |
9/16 in
14.3mm |
