This tile has upturned sides for use when the plates are introduced at an angle or with differing thicknesses to allow the root of the weldment to sit snugly against the tile and present next to the radiused portion where the root will form.

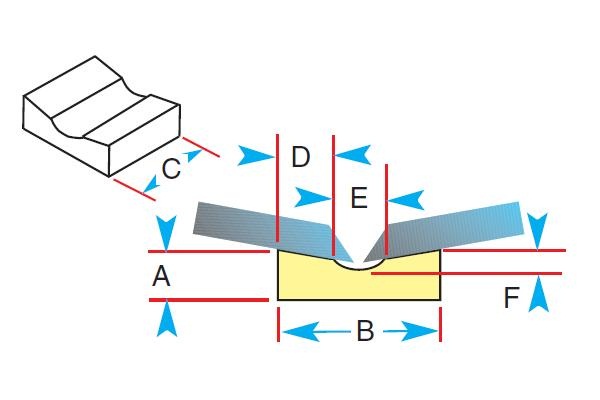

Can be used as shown below.
- Impart X-ray quality back beads on root pass
- Weld one side only
- Deposit more weld metal
- Root weld and fill in one pass
- Eliminate defects and rework
- Eliminate costly unnecessary gouging and grinding
- Sizes 1/4” (6.3 mm) to 6” (152.4 mm)
- Special sizes and configurations available
- Conveniently packaged and sealed in plastic for moisture-proof protection
- Wider heat receptive pressure sensitive foil for improved adhesion to work piece
9m - 30ft./ box
Available in 1/4” to 2” (6.3mm to 50.8mm) tiles.
| Specifications |
| A |
3/8 in
9.5 mm |
| B |
1 3/16 in
30.2 mm |
| C |
1 in
25.4 mm |
| D |
3/8 in
9.5 mm |
| E |
7/16 in
11.1 mm |
| F |
9/64 in
3.6 mm |
