These tiles are for similar uses as the 1G6-RD but for thicker plates up to 15mm thick. Suitable for welding with M.I.G./ M.A.G. solid, flux-cored or metal-cored wires.
Can be used as shown below.
- Impart X-ray quality back beads on root pass
- Weld one side only
- Deposit more weld metal
- Root weld and fill in one pass
- Eliminate defects and rework
- Eliminate costly unnecessary gouging and grinding
- Special sizes and configurations available
- Conveniently packaged and sealed in plastic for moisture-proof protection
- Wider heat receptive pressure sensitive foil for improved adhesion to work piece
9m - 30ft./ box

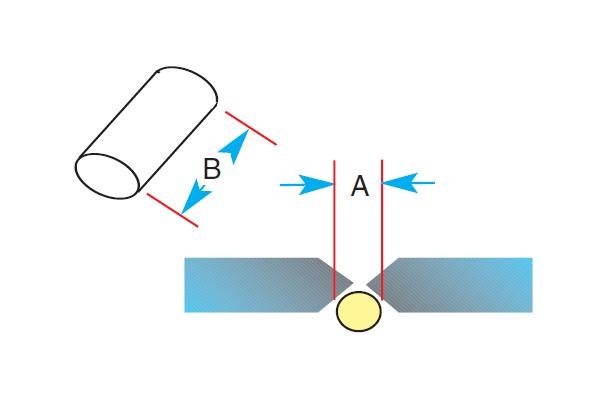

| Specifications |
| A |
7/8 in
22.2 mm |
| B |
1 in
25.4 mm |
