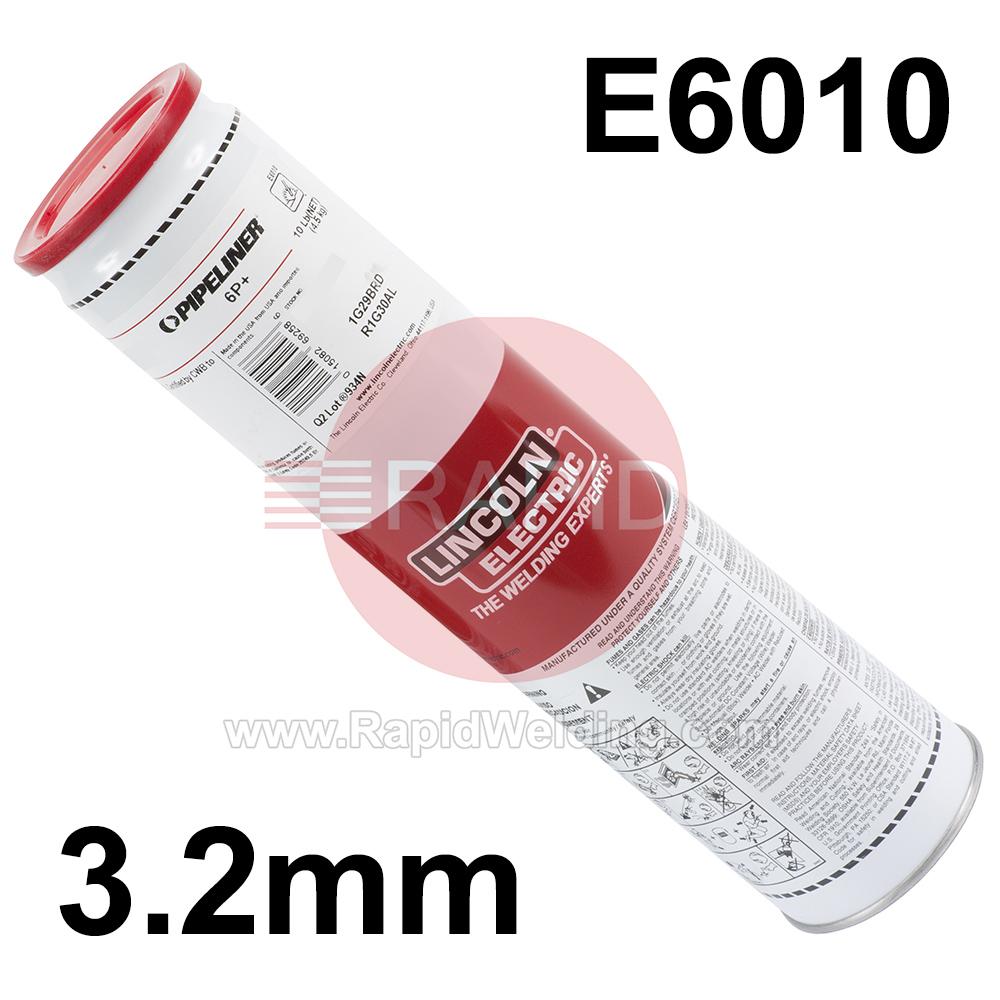

Lincoln Pipeliner 6P+ Pipeline Electrodes 3.2 x 350mm, 13.5Kg carton (3 x 4.5Kg) E6010.
All-position cellulosic pipe electrodes are designed for all-position pipe welding, including vertical down-root pass welding. Designed for root pass welding of pipe up to and including X80, fill and cap pass welding up to and including X60. Light slag with little slag interference for easy arc control. Easy slag release and smooth bead appearance. Deep penetration with maximum dilution. X-ray quality welds, even out of position.
Typical Applications
Cross-country and in-plant pipe welding
Root pass on up to X80 grade pipe
Hot, fill and cap pass on up to X60 grade pipe
Welding Positions
All
Conformance
AWS A5.1: E6010
ISO 2560-A: E 42 3 C 25
