Rapid Ref : 7901850X2-K2

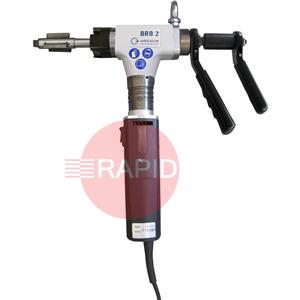

BRB 2 Boiler Pipe Preparation Machine, Kit 2, with "NC" clamp, Pipe ID clamping range: 19.1 - 38.0mm 7901850X2-K2
Select Option
Lightweight and robust Boiler Prep Machine. Counterboring and axial turning of pipes
made from high-alloy steel (stainless steel), low-alloy and carbon steel with the unique
tool system QTC®.
Designed for pipe end preparations and boiler pipe applications.
The BRB machines are available in the following drive versions:
Electric:
230 V, 50/60 Hz EU or 120 V, 50/60 Hz EU/US
Electric drive with single-phase AC motor, Protection class II (double insulated),
Built-in electronic variable cutting speed
Pneumatic:
Pneumatic power drive. Manufacturer’s warranty can only be given when using
the original Orbitalum mobile air unit, Code 790 093 060 (click here to view).
Pneumatic/Auto:
Pneumatic multi-disc or with additional pneumatic clamping system.
Time is of the essence when installing or repairing boiler pipes, the new pneumatic
clamping system greatly reduces the time to both clamp and release the machine, improving
efficiency. The machine centers itself on the inside diameter of the pipe and then
clamps automatically by using the toggle switch, likewise the toggle switch releases the
clamping after the machining operation. This is why the BRB with automatic pneumatic
clamping is ideal for continuous production e.g. boiler and heat exchanger applications.
