Rapid Ref : 72706061000

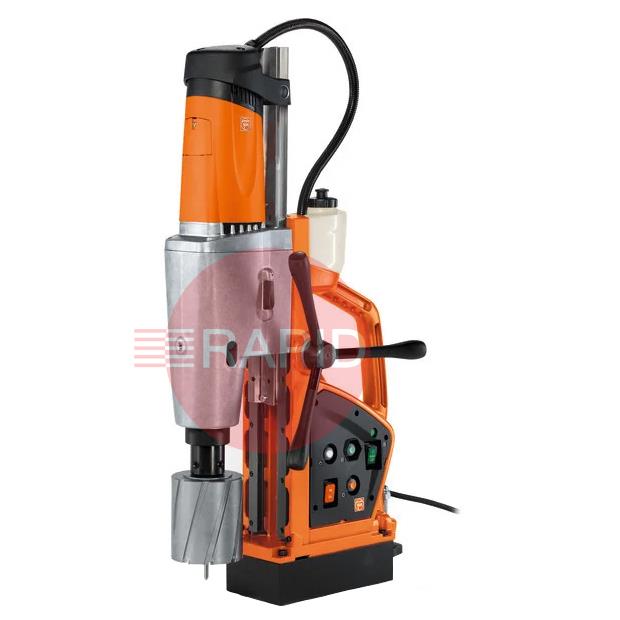

FEIN KBU 110-4 M Universal Magnetic Drill 110mm - 230v
72706061000

£3479.00  EX VAT
SSP Suggested Selling Price = £3795.00  YOU SAVE £316.00
 Buy in 3 easy interest free payments of £1159.67† with
Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

Universal magnetic core drill for up to 110mm

High-performance and powerful 4-speed universal magnetic core drill with forward/reverse running, MT4 tool mounting and maximum functionality for the toughest drilling jobs in the workshop.

  • FEIN 1700 W high-power motor with high torque for heavy-duty drilling work
  • For tough use thanks to outstanding quality of workmanship and swivel-mounted motor cable protective hose
  • Tool with extra-large stroke range for all drilling work, such as core, twist and tap drilling, countersinking and reaming
  • Mechanical 4-speed gearbox
  • High magnetic holding force
  • Torque support for high stability
  • Tilt sensor
  • Slipping clutch torque
  • Convenient magnetic holding force display helps the user to reliably position the tool
  • Speed reduction
  • Reversible
  • MT4 tool mounting
  • Integrated coolant tank delivers long core drill bit lives
  • Personal safety switch

Product Details

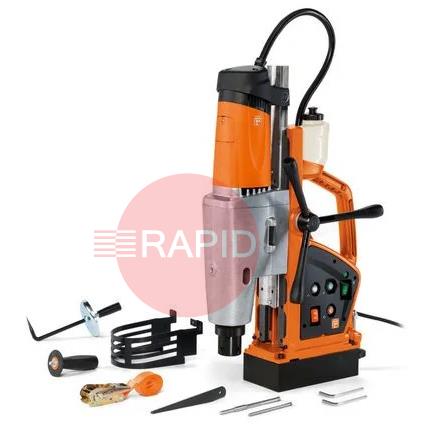

Package Includes

1 coolant tank, 2 centring pins diameter of 6.35 x 125mm and 7.98 x 184mm, 2 5 & 6 hexagon socket wrenches, 1 safety strap with ratchet, 1 contact guard, 1 additional handle, 1 swarf hook, 1 drift key and 1 case.

Specification

Input: 1,700 W
Output: 850 W
Load speed in speed 1: 60 – 120 rpm
Load speed in speed 2: 90 – 170 rpm
Load speed in speed 3: 150 – 300 rpm
Load speed in speed 4: 230 – 430 rpm
Idling speed in speed 1: 100 – 190 rpm
Idling speed in speed 2: 160 – 290 rpm
Idling speed in speed 3: 270 – 500 rpm
Idling speed in speed 4: 420 – 750 rpm
Tool holder: MK 4
Carbide core drill bit max. Ø: 110mm
HSS core drill max. Ø: 80mm
Core drill, drilling depth max.: 100mm
Twist drill max. Ø: 40mm
Tapping: M 36
Countersinking max. Ø: 60mm
Reaming max. Ø: 36mm
Core drill holder: Weldon 32
Stroke: 280mm
Total stroke range: 400mm
Magnetic holding power: 23,000 N
Cable with plug: 4m
Weight according to EPTA: 35.00Kg

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   FEIN KBU 110-4 M Manual Instruction

Related Items

  • FEIN-HSS25 FEIN HSS Slugger Cutter, 25mm Depth

    FEIN HSS Slugger Cutter, 25mm Depth

    Rapid ref : FEIN-HSS25



    From £ 10.81 EX VAT


       Expand Options

  • FEIN-HSS50 FEIN HSS Slugger Cutter, 50mm Depth

    FEIN HSS Slugger Cutter, 50mm Depth

    Rapid ref : FEIN-HSS50



    From £ 13.71 EX VAT


       Expand Options

FEIN Universal Mag Drills FAQs

Straight answers to the questions people ask most when choosing and using high-specification universal magnetic drills.

What makes a magnetic drill universal?icon-minus-redicon-plus-red

A universal magnetic drill is built to do more than core drilling. As well as cutting holes with annular cutters, it can usually drive twist drills, and with the right accessories it can also tap, ream and countersink.

It normally has multiple speeds or electronic speed control and a robust guide for the motor, so it can be set up properly for each job. It suits workshops and contractors who do varied work.

How do I choose the right size of universal mag drill?icon-minus-redicon-plus-red

Start with the largest hole you need to cut and the thickest material you will drill, then choose a machine whose core capacity and cutting depth comfortably exceed them. Look at the twist drill capacity too, if you need it.

Bigger machines have larger magnets, more power and a heavier body. If you move the machine a lot, balance capacity against weight, and do not buy more machine than your work needs.

What are the advantages of a two-speed or electronic speed control?icon-minus-redicon-plus-red

Correct speed is the key to cutter life. Large cutters and twist drills need slower speeds, while small cutters run faster. A gearbox with more than one speed, or electronic control, lets you match the speed to the job.

The result is a better finish, less heat and longer life for cutters and tools, and it also lets you use the machine for reaming and tapping, which need slower speeds.

How does the magnet affect safe working?icon-minus-redicon-plus-red

The magnet is what holds the machine in place, and its holding force depends on the steel's thickness, flatness and cleanliness. Thin or uneven material, rust, paint, swarf and air gaps all weaken the hold.

Clean the surface and the magnet face, switch on the magnet, and check it is holding before you start the motor. Use a safety strap where the machine could fall, such as overhead or vertical work, and where required by the instructions.
