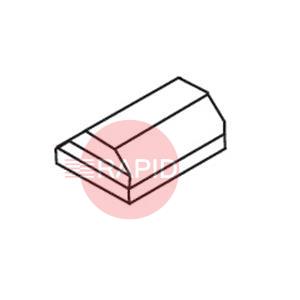

This is for fitting behind a single bevel, single v butt where a fillet weld must be produced on the backside of the joint during welding on the front side of the joint... possibly where access for welding or repairs is not possible. This tile will produce a mitred fillet.
Can be used as shown below.
- Impart X-ray quality back beads on root pass
- Weld one side only
- Deposit more weld metal
- Root weld and fill in one pass
- Eliminate defects and rework
- Eliminate costly unnecessary gouging and grinding
- Sizes 1/4” (6.3 mm) to 6” (152.4 mm)
- Special sizes and configurations available
- Conveniently packaged and sealed in plastic for moisture-proof protection
- Wider heat receptive pressure sensitive foil for improved adhesion to work piece
12m - 40ft./ box
Available in 1/4” to 2” (6.3mm to 50.8mm) tiles.
| Specifications |
| A |
11/32 in
8.7 mm |
| B |
3/4 in
19 mm |
| C |
1 in
25.4 mm |
| D |
7/32 in
5.6 mm |
| E |
5/16 in
7.9 mm |
| F |
90° |
| G |
1/8 in
3.2 mm |
