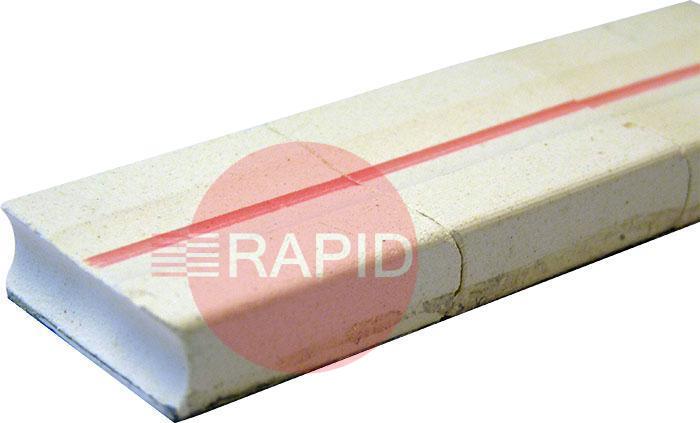

This is similar to the 1G42-R but has a slightly smaller groove where more penetration is required than with the 1G42-R. Each tile is radiused to form a strip around a cylinder.
Can be used as shown below.
- Impart X-ray quality back beads on root pass
- Weld one side only
- Deposit more weld metal
- Root weld and fill in one pass
- Eliminate defects and rework
- Eliminate costly, unnecessary gouging and grinding
- Sizes 1/4” (6.3mm) to 6” (152.4mm)
- Special sizes and configurations available
- Conveniently packaged and sealed in plastic for moisture-proof protection
- Wider heat-receptive pressure-sensitive foil for improved adhesion to the workpiece
12m - 40ft./ box
Available in 1/4” to 2” (6.3mm to 50.8mm) tiles.
| Specifications |
| A |
1/4 in
6.3 mm |
| B |
1 in
25.4 mm |
| C |
1 in
25.4 mm |
| D |
5/16 in |
| E |
3/8 in
9.5 mm |
| F |
1/32 in
0.79 mm |
| G |
3/16 in
4.8 mm |
