This is a 6mm round tile suitable for X preps, K preps and single bevel, single v butt joints (similar to fillet welds) on thin plates up to 10mm thick. Suitable for welding with MIG / MAG solid flux-cored or metal-cored wires. 1G9-RD is for use on thicker plates.

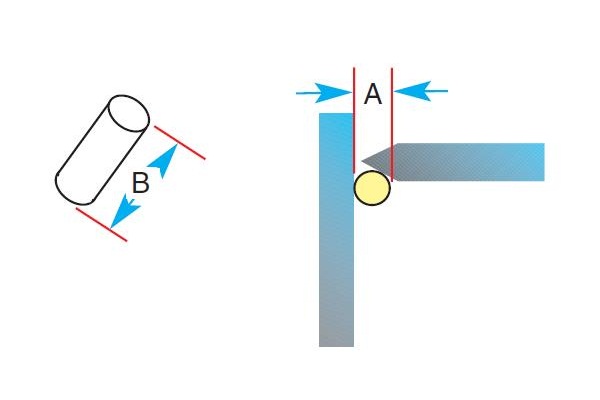

Can be used as shown below.
- Impart X-ray quality back beads on root pass
- Weld one side only
- Deposit more weld metal
- Root weld and fill in one pass
- Eliminate defects and rework
- Eliminate costly unnecessary gouging and grinding
- Sizes 1/4” (6.3 mm) to 6” (152.4 mm)
- Special sizes and configurations available
- Conveniently packaged and sealed in plastic for moisture-proof protection
- Wider heat receptive pressure sensitive foil for improved adhesion to work piece
12m - 40ft./ box
Available in 1/4” to 2” (6.3mm to 50.8mm) tiles.
| Specifications |
| A |
1/4 in
9.5 mm |
| B |
1 in
25.4 mm |
