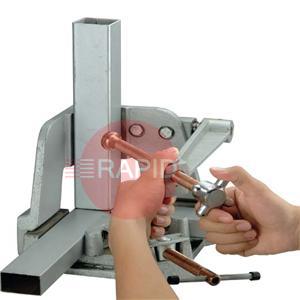

Holds a 3-axis workpiece in position before welding.
Features the quick-acting screws and “Swing Away” arm.
- With the push of the buttons, the threaded screws easily slide in and out
- When the job is finished, simply swing away the 3rd Axis arm for quick and easy part removal
- Hold parts in position during cool down to minimise distortion due to contraction
- Available in 95mm and 121mm capacity, model WAC45-SW comes with a curved arm for greater workpiece clearance
Features
- 3-Axis fixture
- Quick-acting screw
- Two stand-offs
- Swing away arm
Miter Joint(A): 95mm
Jaw Length(B): 122mm
T-Clearance(C): 62mm
Jaw Height(D): 35mm
Weight: 11Kg
