This tile is specially designed to prevent back bead droop in horizontal welding and can be used with MIG welding with solid wire, metal core wire and can also be used with flux core wire.
Can be used as shown below.
- Impart X-ray quality back beads on root pass
- Weld one side only
- Deposit more weld metal
- Root weld and fill in one pass
- Eliminate defects and rework
- Eliminate costly unnecessary gouging and grinding
- Sizes 1/4” (6.3 mm) to 6” (152.4 mm)
- Special sizes and configurations available
- Conveniently packaged and sealed in plastic for moisture-proof protection
- Wider heat receptive pressure sensitive foil for improved adhesion to work piece
12m - 40ft./ box
Available in 1/4” to 2” (6.3mm to 50.8mm) tiles.

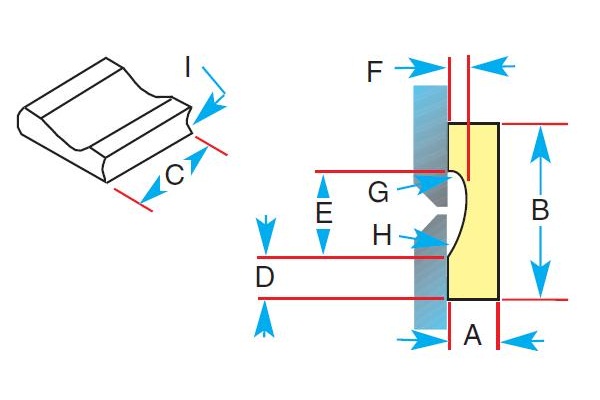

| Specifications |
| A |
1/4 in
6.3 mm |
| B |
1 in
25.4 mm |
| C |
1 in
25.4 mm |
| D |
1/4 in
6.3 mm |
| E |
1/2 in
12.7 mm |
| F |
3/32 in
2.4mm |
| G |
3/32 in
2.4 mm |
| H |
3/4 in
19mm |
| I |
3/16 in
4.8mm |
