Rapid Ref : SGS360

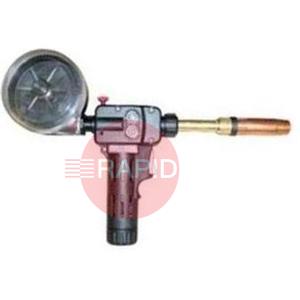

Spool-on Gun MB36 Type 8 Metre with Euro Connection SGS360

£550.00  EX VAT
 Buy in 3 easy interest free payments of £183.33 with

STANDARD FEATURES

  • No control box or auxiliary supply is needed so more convenient & easier to fit & use. Very flexible 8m rubber sheathed cable assembly, or optional 15m cable assembly. Recessed wire speed control to prevent damage.
  • Excellent welding performance on aluminium, stainless and mild steel.
  • Can be moved from machine to machine easier than any other spool on gun system.
  • Robustly constructed gun designed for a long life, with all metal gears in the gearbox & replaceable motor brushes.
  • Cables terminate in the gun & both ends can be made off if the cable becomes damaged. User-friendly well balanced gun with adjustable position for the spool for the best access. Swan neck can be changed easily & both guns will take either neck
  • Different versions of this unit are available including one which fits machines without a euro or without a wire feed unit, this connects straight onto a power source and has a built in gas solenoid. This version is ideal for making good use of redundant power sources. Many other variations are possible on request.

Product Details

TECHNICAL SPECS: SGS360

  • Cable assy length: (15m on request) 8m
  • Gun consumables: MB 36 M8 type
  • Spool size: 102mm x 45mm
  • Wire size: 0.8 - 1.2mm
  • Welding current rating (mixed gas): 300A @ 60%
  • Welding Voltage range: 15-60V
